# Is there enough space on the plot for geothermal energy drilling?

###### Our algorithm calculates the maximum number of boreholes that can be placed on a plot based on the geographic polygons of the plot and the building. Deeper boreholes are more expensive but necessary if there isn't enough space on the plot.

###### Check if you can fit required boreholes on your plot with our calculator:

## How Many Boreholes Can Fit on the Plot?

The number of boreholes that can fit on a plot is influenced by the required heat production, which sets a lower limit on the amount of energy that must be obtained from the boreholes. The depth of the borehole directly determines the energy production from a single borehole.

On the other hand, when the depth of the borehole exceeds 400-500 meters, the cost and risks of drilling increase significantly. For this reason, in an optimal situation, the required amount of energy can be produced with multiple boreholes. But how do you know how many boreholes can fit on the plot?

## Polygon Data and an Efficient Algorithm to the Rescue

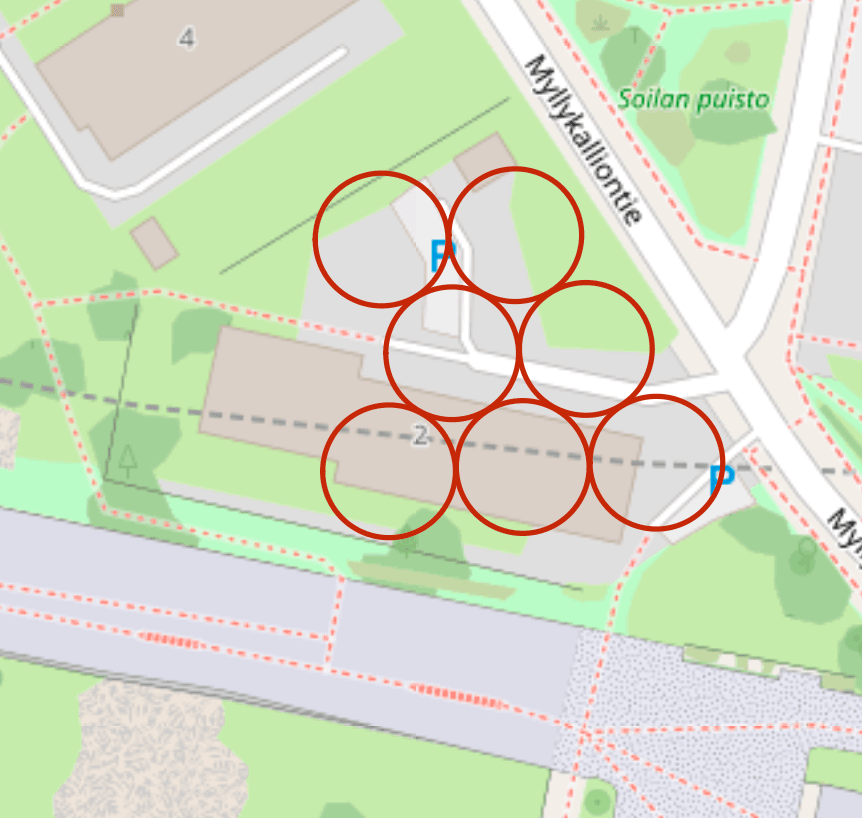

We use geographic polygon data of buildings and plots to map the number and locations of boreholes. Our algorithm places potential borehole locations on the plot in a dense triangular pattern, and through about 200 simulations, we find the combination that maximizes the number of boreholes on the plot.

The constraints for the boreholes require a distance of 15 meters from each other and 7.5 meters from the plot boundary (or the centerline of a nearby road). Additionally, the starting point for drilling a borehole must not be less than 3 meters from the building or 2.5 meters from each other.

In a 50-apartment building in Helsinki's Lauttasaari with a large 2,400 square meter plot of somewhat complex shape, a simple area estimate suggested that up to 12 boreholes could fit on the plot. However, this gave an overly optimistic picture. Our algorithm found only 9 possible borehole locations on the plot.

From this link, you can fond some inspiration on how the algorithm is implemented under the hood.

## Optimizing Borehole Quantity and Depth for Tens of Thousands in Savings

Once the maximum number of boreholes that can fit on the plot is known, our algorithm searches for the most cost-effective number of boreholes and their depths, taking into account the increasing energy production and drilling costs as borehole depth increases. We perform up to thousands of simulations with different borehole depths and numbers to find the cheapest way to produce the required amount of energy.

For our example housing company, the sweet spot was found with 7 boreholes at a depth of 475 meters, with drilling costs amounting to around €120,000 (excluding VAT). Compared to, for example, 9 boreholes at 400 meters, the drilling costs are about €15,000 less, as less earthmoving work is required. On the other hand, 5 boreholes at 600 meters would cover the required amount of energy, but drilling to 600 meters significantly increases costs (by about €20,000), making more but shallower boreholes overall cheaper.

Additionally, project costs may include more detailed planning, heat pumps and necessary components, installation work, possible electricity connection upgrades, and VAT.

## Find a contractor for your project or start preliminary planning

Contractors delivering geothermal projects create more detailed borehole plans during the final bidding phase, at which point the exact drilling costs become clear. It is important to ensure that the boreholes' production capacity is adequately sized so that their efficiency does not diminish over the years in an attempt to reduce initial investment costs.
